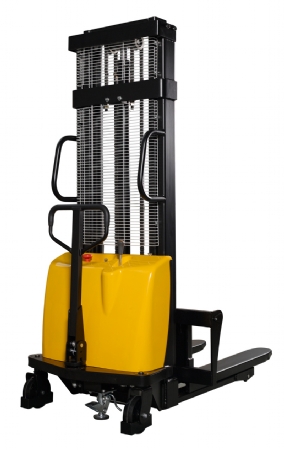

Half Electric Stacker |
|
|
■ C-type steel is used on the mast. ■ The whole series are equipped with stretched safety grid and wheel carrier protection device. ■ Adjustable fork is opted. ■ Frame design strong capacity is strong Steady lifting falling ,speed can be control |
|
Item | | BDD1500 | BDD2000 | Capacity Q | (kg) | 1500 | 2000 | Load centre | (mm) | 400 | 400 | Min.fork height H | (mm) | 90 | 90 | Max.fork height H1 | (mm) | 1600 / 2000 / 2500 / 3000 / 3500 | 1600 / 2000 | Fork length L | (mm) | 1080 | 1080 | Width overall forks B | (mm) | 160 | 160 | Width overall forks B | (mm/s) | 100 | 100 | Width overall forks B | (mm/s) | 66 | 66 | Width overall forks B | (mm/s) | 123 | 123 | Min.turning radius | (degree) | 1750 | 1750 | Overall legth | (mm) | 1800 | 1800 | Overall width | (mm) | 1070 | 1070 | Overall height | (mm) | 2085 / 1585 / 1835 / 2085 / 2385 | 2085 /1585 | Net weight | (kg) | 338 / 390 / 401 / 412 / 423 | 366 / 428 |
|
|
|
|
